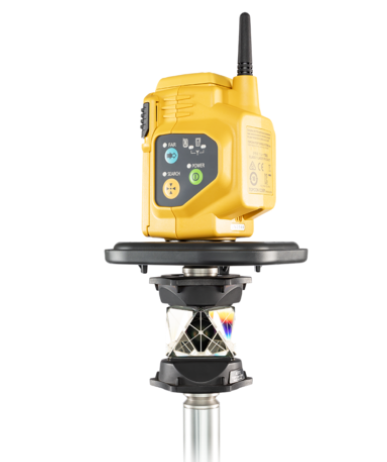

Topcon RC-5A Remote Controller
When connected with external data collector the RC-5 LonglinkTM communication provides license free communication. The Longlink communication is built in to the RC-5. The RC-5 has the ability to send a signal to the total station to quickly re-acquire the prism.
Features & Benefits
- 600 meter Longlink Communication
- Can be used with multiple Topcon data Collectors
- 300 meter Quick Lock
- Waterproof IP-55
- 40 hours on one Rechargeable Li-Ion battery
End delays with a single tap
Easily establish prism lock in seconds
If you have worked on a busy jobsite with a robotic total station, you know that obstructions can sometimes break the lock between the total station and a pole-mounted prism. Without the RC-5A, the process of reacquiring this lock can be time-consuming, potentially causing delays and downtime.
The RC-5A GT Series accessory provides the fastest and simplest way to relock the connection to the prism when line of sight has been interrupted. Simply tap the field software once, and the robotic total station will detect the fan-shaped laser beam emitted by the RC-5A and relock within seconds.
Topcon RC-5 Remote and Handle Specifications Remote Control System
-20°C to 50°C (-4°F to 122°F)
-30°C to 60°C (-22°F to 140°F)
RC-5 Remote = IP55
RC-5 Handle = IP65
2 to 300 meters (6 to 984 feet)
*When using Remote System with a Topcon ATP1 360 degree prism Topcon RC-5 Handle
DC 7.4V from Topcon total station PS
